Description

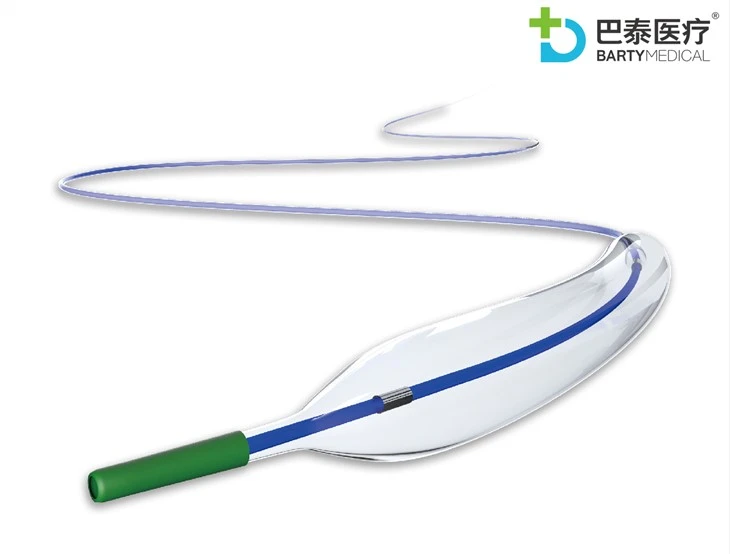

WANTY PTA balloonkateeter on üle traadi (OTW) perifeerne balloonkateeter, mis on spetsiaalselt ette nähtud perkutaanseks transluminaalseks angioplastikaks aterosklerootiliste ummistustega veresoontes.
Kateetri distaalset otsa kattev hüdrofiilne kate tagab ballooni võlli parema libeduse.
A guidewire ({{0}}.014" 0.018" 0.035") is recommended for use with the Balloon Catheter (Balloon catheter specification refers to the attachment for detailed). The connector(s) at the end of hub provide two accuracy conical fittings with a 6 percent luer taper for securely fitted to other medicalequipment.
Intened use
WANTY PTA balloonkateetrid on näidustatud perifeerse veresoonkonna süsteemi perifeerse transluminaalse angioplastika (PTA) jaoks (sealhulgas niudearter, reiearter, niudearter, popliteaalarter ja alumine genikulaararter). Seade on näidustatud stenootilise veresoonte laiendamiseks. Arvutatud läbimõõt perifeersete arterite obstruktiivse haiguse raviks.
Mudeli spetsifikatsioonid
Recommended guidewire0.035", double lumen catheter | ||||||||||
Catheter length(cm) | Balloon diameter (mm) | Balloon Length(mm) | ||||||||
20 | 40 | 60 | 80 | 100 | 120 | 150 | 200 | 220 | ||
80 | 3.00 | H080030002035D | H080030004035D | H080030006035D | H080030008035D | H080030010035D | H080030012035D | H080030015035D | - | - |
3.50 | H080035002035D | H080035004035D | H080035006035D | H080035008035D | H080035010035D | H080035012035D | H080035015035D | - | - | |
4.00 | H080040002035D | H080040004035D | H080040006035D | H080040008035D | H080040010035D | H080040012035D | H080040015035D | H080040020035D | H080040022035D | |
5.00 | H080050002035D | H080050004035D | H080050006035D | H080050008035D | H080050010035D | H080050012035D | H080050015035D | H080050020035D | H080050022035D | |
6.00 | H080060002035D | H080060004035D | H080060006035D | H080060008035D | H080060010035D | H080060012035D | H080060015035D | H080060020035D | H080060022035D | |
7.00 | H080070002035D | H080070004035D | H080070006035D | H080070008035D | H080070010035D | H080070012035D | H080070015035D | H080070020035D | H080070022035D | |
8.00 | H080080002035D | H080080004035D | H080080006035D | H080080008035D | - | - | - | - | - | |
9.00 | H080090002035D | H080090004035D | H080090006035D | H080090008035D | - | - | - | - | - | |
10.00 | H080100002035D | H080100004035D | - | - | - | - | - | - | - | |
12.00 | H080120002035D | H080120004035D | - | - | - | - | - | - | - | |
130 | 3.00 | H130030002035D | H130030004035D | H130030006035D | H130030008035D | H130030010035D | H130030012035D | H130030015035D | - | - |
3.50 | H130035002035D | H130035004035D | H130035006035D | H130035008035D | H130035010035D | H130035012035D | H130035015035D | - | - | |
4.00 | H130040002035D | H130040004035D | H130040006035D | H130040008035D | H130040010035D | H130040012035D | H130040015035D | H130040020035D | H130040022035D | |
5.00 | H130050002035D | H130050004035D | H130050006035D | H130050008035D | H130050010035D | H130050012035D | H130050015035D | H130050020035D | H130050022035D | |
6.00 | H130060002035D | H130060004035D | H130060006035D | H130060008035D | H130060010035D | H130060012035D | H130060015035D | H130060020035D | H130060022035D | |
7.00 | H130070002035D | H130070004035D | H130070006035D | H130070008035D | H130070010035D | H130070012035D | H130070015035D | H130070020035D | H130070022035D | |
8.00 | H130080002035D | H130080004035D | H130080006035D | H130080008035D | - | - | - | - | - | |
9.00 | H130090002035D | H130090004035D | H130090006035D | H130090008035D | - | - | - | - | - | |
10.00 | H130100002035D | H130100004035D | - | - | - | - | - | - | - | |
12.00 | H130120002035D | H130120004035D | - | - | - | - | - | - | - | |
Levinud mudelid ja spetsifikatsioonid
Haigus | PTA Balloon Catheter | Model Specifications |
Iliac artery stenosis | Common iliac artery:7-10mm; external iliac artery:5-8mm;Length: 40/60/80mm; Compatible guide wire: 0.035inch,Push rod length: 130cm; | nt: H130060008035 |
Femoropopliteal artery stenosis | Diameter 3-6mm; length 40-220mm; Compatible guide wire: {{0}}.035/0.018inch; push rod length: 130cm; | nt: H130030015018, H130040015018 |
Inferior genicular artery stenosis | Diameter 1.5-4.0mm;conical balloon; length 20-220mm; Compatible guide wire:{{0}}.035/0.018inch; push rod length: 150/180cm; | nt: H150020015014, H150025015014 |
central vein | Diameter: 6-12mm; Length: 40/60/80/100mm Compatible guide wire: 0.035inch; push rod length:130cm | nt: H130100004035, H130120004035 |
NÕUANDED | Läbimõõt: 6/8mm; Pikkus: 60/80mm Compatible guide wire:0.035inch;push rod length:80cm | nt: H080060008035 |
Toote eelis
Õhupall volditakse poolitamise ja veeremise käigus kokku, et vähendada kokkuvolditud rist{0}}lõikepinda, õhupall on hästi tagasitõmbunud ja sellel on mälu
Barty tegi hüdrofiilsete kattepreparaatide väljatöötamiseks koostööd jMedtechiga. Tromboosi tõhusaks vähendamiseks ja kateetri läbitavuse parandamiseks kasutatakse kahe{0}}kihi katet
